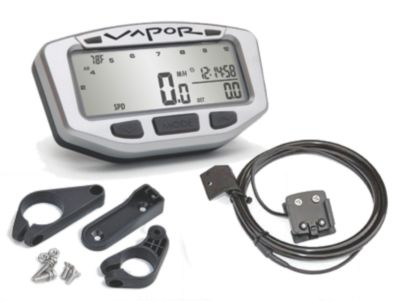

TRAIL TECH VAPOR COMPUTER KIT - SILVER

I do not believe the screen illuminates in the dark.

The Vapor and Vector computers come with a very basic plastic mounting kit. Please refer to: http://www.trailtech.net/7000-1000.html to see the mounting hardware that is included. You can purchased aluminum mounts, "dashboards" they are called, seperately.

I would recommend contacting the manufacture, Trail Tech, for specific application questions.

For the KTM's we offer a kit that fits the KTM SX/MXC/EXC/XC/XC-W (OEM sensor style and radiator hose insert) 00-08, units without an outside power source (ignition) the LED and White back ground lights will not work, a simple solution would be to wire in a good small 9v radio battery this will give you approx 6-8 months of use.

With out wiring the unit to a power source the LED and White back ground light will not work. An easy solution would be to wire in a good 9v battery, this will give you everything you need, they will last approx. 6-8 months. you could Velcro or tape it to the back of your # plate. I would also unplug the battery if its going to be sitting for awhile.

Depending on applications, on an air cooled motor it's going to be Ambient temperature on the liquid cooled motors it will be water engine temp sensors. they are model specific so you get the correct sensor for your application The Vapor and Vector both have Dual programmable temp lights and selectable F & C displays

On the Raptor and LTR450 they use a C-bracket that attaches to the left front wheel spindle, the magnet pickup replace one of the rotor bolts, this give you the speed. more info can be found to the trail tech web site: (http://www.trailtech.net/instructions.html)

Yes...the Vapor computer will work for that model. Just give one of the salesman a call or click the call me button and they can special order it in for you.

Yes, Trail tech does offer a computer for that application, we don't stock them but we can get it for you. If you give our sales guys a call they will be able to get you more information 888-676-8853. this kit fits: Honda CRF 150/230 '03-08 Trail tech part # 75-900

You have the option of running batteries (DC power) or you can hard wire the unit into the quads power source(battery/ AC). The speedometer works by inserting a small magnet into the rotor (where it doesn't rotate into the caliper) and you mount the pickup to the quad. I'm not exactly sure were the pickup is mounted on the Z400, but the instructions that are included will tell you exactly.

These were designed to mounted in the Trail Tech Dash mount. You may have to customize the stock dash if you decide to use that, and there will be no grantee's it would fit.

Everything you'll need is included in the kit, all you have to do is install it.

In most cases there is a magnetic bolt that replaces one of the bolts in the front brake rotor. Once you get that bolt in place you will have to find a spot where you can mount the speed sensor no more than a half an inch from the magnet bolt on the rotor. This is just the general installation process but the computer will come with instructions to walk you through it. It's pretty simple.

You will have to manually turn the unit off.

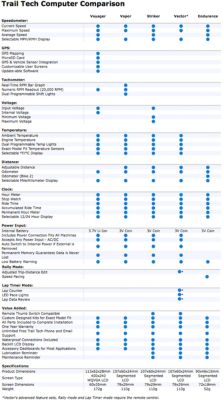

It depends on how technical you want to get, the endurance computer is pretty basic and just reads speed, distance and time. The Vapor does speed, temp, RPM, Distance, and clock so it really boils down to what you would prefer.

Yes it does tell you what RPMS you are at, there are RPM indicator lights to tell you when to shift and when you are too high in the RPMS but they need to be set up depending on what bike you have.

The kit would come with a speedo cable and a magnetic bolt that replaces one of the bolts on your front rotor. So basically you replace the bolt on your front rotor with the magnetic bolt included in the kit, route the speedo cable down to your fork guard and line the cable up with the rotor bolt you installed according to the directions and you should be set. It's pretty straight forward.

The Vaper kit comes with both a 7/8" and 1 1/8" mounting clamp for the handle bars, here's a link for the instructions for your application RM kit is 300 if notes mention that #: http://www.trailtech.net/media/instructions/computers/shared/010-ELV-01.pdf

The only thing you might need on the RM250 is a higher out put stator. As far as how the machine works, for MPH it comes with a magnetic rotor bolt that replaces one of the bolts on the front rotor along with a MPH cable that runs into the computer. Same concept goes for how it reads how many miles you have gone. If you need to find out exactly what you need to run this set up, feel free to contact Trail Tech direct or one of our sales reps.

Yes it will, you will just have to wire it in according to the directions.

this doesn't include any bar mounts.

The Trail Tech Vapor computer part number we stock for an 07 200xc is: 75-102

You would need to get the Vapor computer holder since it will not fit in the Endurance holder.

The Vapor computer has a bright white backlit LCD display.

You may need to get in touch with Trail Tech in order to get that magnet.

Could be some wiring issues or that the computer is still running off the internal battery. The computer should have came with an instructions manual. Go back through the installation process and see if that fixes it. If you've already done that I would recommend contacting Trail Tech and see if their tech department can help you out. www.trailtech.net

That depends on the pro taper handlebars you are referring to.

The Vapor computer DOES show RPM, the VECTOR computer does not.

Yes this comes with a generic plastic mounting kit.

since your bike doesn't have a battery you would have to hook it up to your stator. Some bikes do require a higher output stator so be aware of this and be extremely careful when installing.

Yes you would need 75-300 if you have a 09 250F. Like i was saying, it will work with your bike, you just have to wire it to your stator. The computer comes with detailed instructions on how to install the computer and for liability reasons I can not break down how to install it for you. If you want to contact Trail Tech to double check everything feel free, but this computer will work with your bike. It's just a matter of wiring it in properly. PS: On trail techs website they do have their instructions so those should answer most of your questions.

we are only stocking the standard Vapor but we can order the stealth no problem, just give us a call at 888.676.8853

Yes this works on two strokes, as far as your stock electrical stuff goes, your probably going to want to get a higher output stator, but you can get by with the stock one. Detailed instructions are provided.

Yes this is will work with your 500. Profile your bike correctly in the selector. If your bike is listed in the drop downs, then it will fit.

yes we can special order any Trail Tech item, just give us a call and we will get you taken care of.
